M7A2 Interlocking Blockmaking Machine

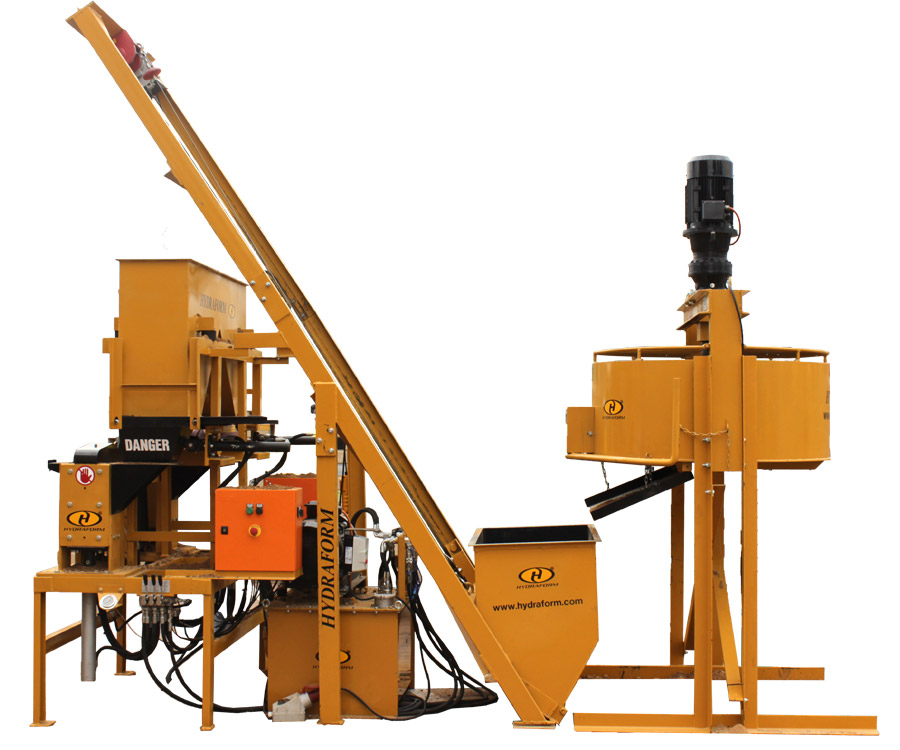

Automated Stationary Hydraform blockmaking machine with automated twin compression chambers, pan mixer and loading skip. The machine is powered by an electric 3-phase 380v motor, hydraulic power pack including cylinders and two automated compression chambers, The 300L mixer discharges material directly into the loading skip, which then deposits the material into the double hopper for filling the chamber for simple and efficient operation. This stationary machine is ideal for blockyard operations requiring high volume output with minimum manpower to increase output and reduce costs.

M7A2
Download Brochure

Send us a message if you would like more information on our product/s

Please fill in your details below

We are currently testing this new contact form. Should you have any difficulties submitting the form, please feel free to email us on sales@hydraform.com or WhatsApp +27 83 566 3917.
In the unlikely event we have not contacted you within 48hrs, please contact Mrs Nazlie Dickson marketing@hydraform.com or WhatsApp +27 83 566 3917

  • Machine Specifications
  • Block Range
  • Mobile Machine:
  • no
  • Available in diesel and electric:
  • 3- phase Electric Only
  • Integrated Pan mixer:
  • 300L
  • Number of compression chambers:
  • 2
  • Block production:
  • 6,000 per 8hour shift
  • Produces interlocking soil cement blocks:
  • Yes
  • Machine Warranty:
  • 6 months
  • Free 220mm mould:
  • Yes
  • Skip chute:
  • Hydraulically operated hopper loading
  • Tow hitch:
  • no
  • Road tyres:
  • no
  • Training:
  • Available
  • Blockyard tools:
  • Available
  • Operating staff:
  • ±6-8
  • Machine weight:
  • ±2560kg (excl. crating)
  • Maintenance:
  • 1 year spares pack
