Rotary Screens

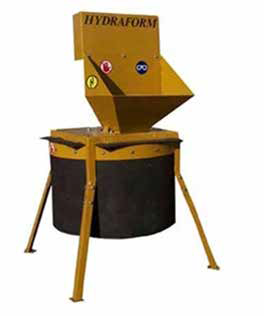

• Capacity: 1 - 2m³ per hour
• Power Requirement: Single phase 220 Volt or three phase 380 Volt 2.2kW
• Operating Staff: 1-2
• Advantages: To prepare soil for block making by crushing dry soil lumps less than 80mm
• Input material: Dry soil lumps
• Maximum feed siz: 80mm
• Discharge material size: Particle sizes of 8mm to dust, however a percentage of discharged material will be larger than 8mm in size. The discharged material must be screened and the larger particles put through the pulveriser again

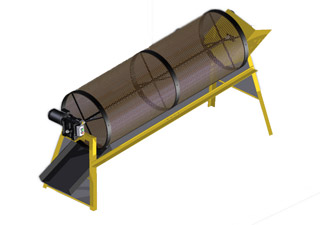

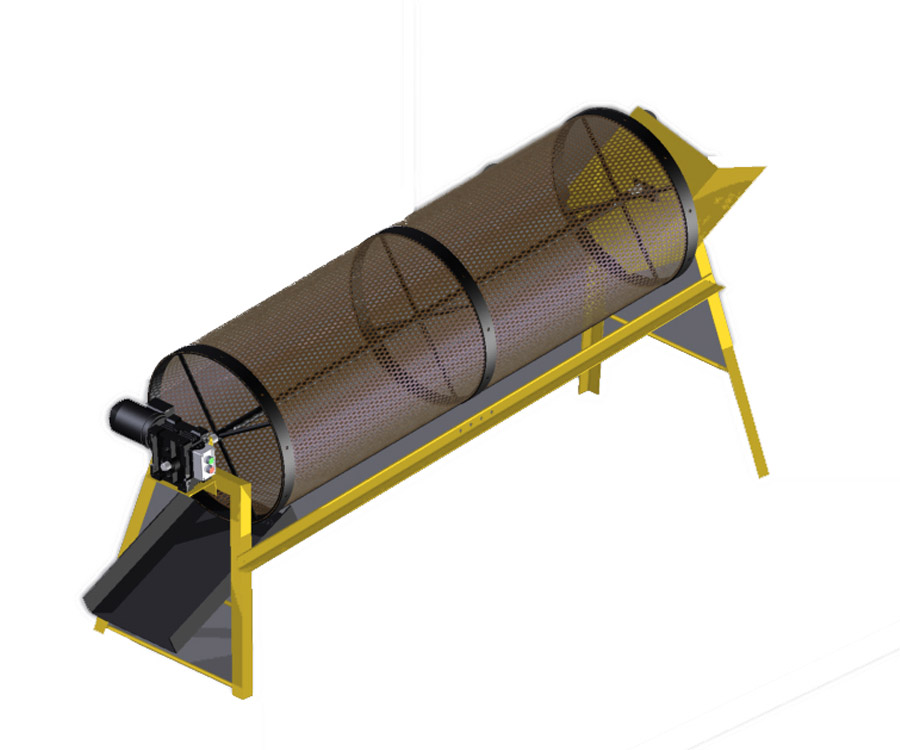

• Capacity: Screens an estimated 15m³ of raw material per day, depending on material and loading methods
• Power Requirement: Manual, single phase 220 Volt or three phase 380 Volt 0.37kW
• Features: Removable handle for manual operation of electric motor sieves, if required. It is fitted with loading and discharge chutes and replaceable 8mm wire mesh. Other mesh sizes available on request
• Operating Staff: 2-3
• Discharge material size: 8mm to dust

• Capacity: Screens an estimated 30m³ of raw material per day, depending on material and loading methods
• Power Requirement: 3 phase 380 Volt 1.5kW
• Operating Staff: 2-3
• Features:
  • 900mm drum diameter
  • 1.9m drum length
  • Fitted with 8mm high carbon braided mesh (variety of mesh aperture available)
  • With a 1.5m3 Gravity feed hopper
• Discharge material size: 8mm to dust (or as per mesh fitted)

• Capacity: Screens an estimated 60m³ of raw material per day, depending on material and loading methods
• Power Requirement: 3 phase 380 Volt 5.2kW
• Operating Staff: 1-2
• Features:
  • 900mm drum diameter
  • 3.6m drum length
  • Fitted with 8mm high carbon braided mesh (variety of mesh aperture available)
  • On a sub-frame with wheels axle and belly belt
  • Includes a separate 6m mobile extraction belt for the screened product
  • Includes a 1.5 m3 gravity feed hopper
  • Includes a 4-way electrical control box (3 phase)
• Discharge material size: 8mm to dust (or as per mesh fitted)

• Capacity: Screens an estimated 110m³ of raw material per day, depending on material and loading methods
• Power Requirement: 3 phase 380 Volt 4.4kW
• Operating Staff: 1-2
• Features:
  • 1.1m drum diameter
  • 3.6m drum length
  • Fitted with 8mm high carbon braided mesh (variety of mesh aperture available)
  • With a wall mount sub-frame (the bunker wall is not included in the price)
  • Includes a 6m long feeding conveyor belt with a 1.5 m3 hopper
• Discharge material size: 8mm to dust (or as per mesh fitted)

• Capacity: Screens an estimated 130m³ of raw material per day, depending on material and loading methods
• Power Requirement: 3 phase 380 Volt 6kW
• Operating Staff: 1-2
• Features:
  • 1.2m drum diameter
  • 3.6m drum length
  • Drum reinforced with Y-bar for large stones
  • Fitted with 8mm high carbon braided mesh (variety of mesh aperture available)
  • On a sub-frame with belly belt
  • Includes a separate 10m mobile extraction belt for clean product
  • Includes a 1.5 m3 gravity feed hopper
  • Includes a 4-way electrical control box (3 phase)
• Discharge material size: 8mm to dust (or as per mesh fitted)

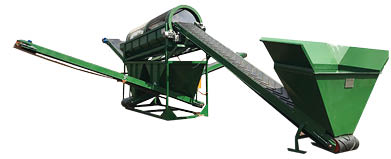

Hydraform Rotary Screen - RS160

• Capacity: Screens an estimated 160m³ of raw material per day, depending on material and loading methods
• Power Requirement: 3 phase 380 Volt 11kW
• Operating Staff: 1-2
• Features:
  • 1.3m drum diameter
  • 3.6m drum length
  • Fitted with 8mm high carbon braided mesh, 2 x product size at the same time (variety of mesh aperture available)
  • Belt funnel sub-frame
  • Includes 4 x conveyor belts – Feeding, 2 x extraction belts and an oversize belt
  • Includes a 5-way electrical control box (3 phase) with a variable speed drive for the feeding belt
• Discharge material size: 8mm to dust (or as per mesh fitted)
