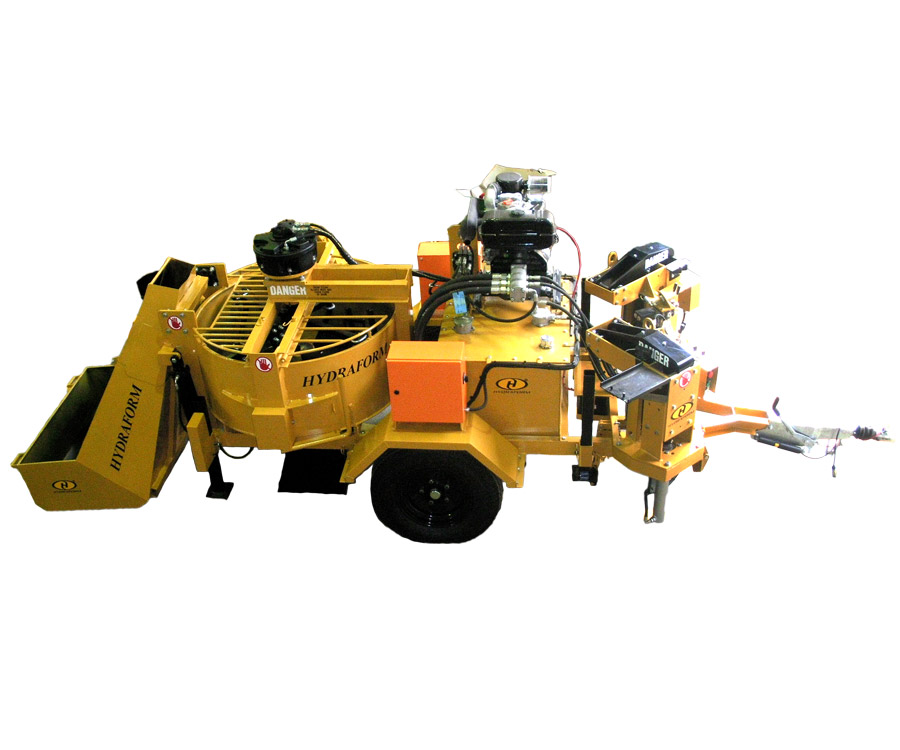

M7M4 Interlocking Blockmaking Machine

The machine is ideal for large operations where higher volumes are required. The machine has 2 chambers, each capable of producing 3000 blocks (total 6000) per day, as well as an integrated 300L pan mixer and skip chute.

The M7M4 is mobile and can be towed to different sites producing blocks when and where required. The machine is inclusive of an diesel engine electric-start, hydraulic power pack including cylinders, two compression chambers, pre-compacting top gate assembly, hydraulically-driven pan mixer and hydraulically-operated skip for faster, easier loading of soil into mixer chute , tow - hitch and road tyres all fitted on a trailer inclusive of spring axle.

M7M4
Download Brochure

Send us a message if you would like more information on our product/s

Please fill in your details below

We are currently testing this new contact form. Should you have any difficulties submitting the form, please feel free to email us on sales@hydraform.com or WhatsApp +27 83 566 3917.
In the unlikely event we have not contacted you within 48hrs, please contact Mrs Nazlie Dickson marketing@hydraform.com or WhatsApp +27 83 566 3917

  • Machine Specifications
  • Block Range
  • Mobile Machine:
  • Yes
  • Available in diesel and electric:
  • Yes
  • Integrated Pan mixer:
  • Yes
  • Number of compression chambers:
  • 2
  • Block production:
  • 6000 per 8 hour shift
  • Produces interlocking soil cement blocks:
  • Yes
  • Machine Warranty:
  • 6 months

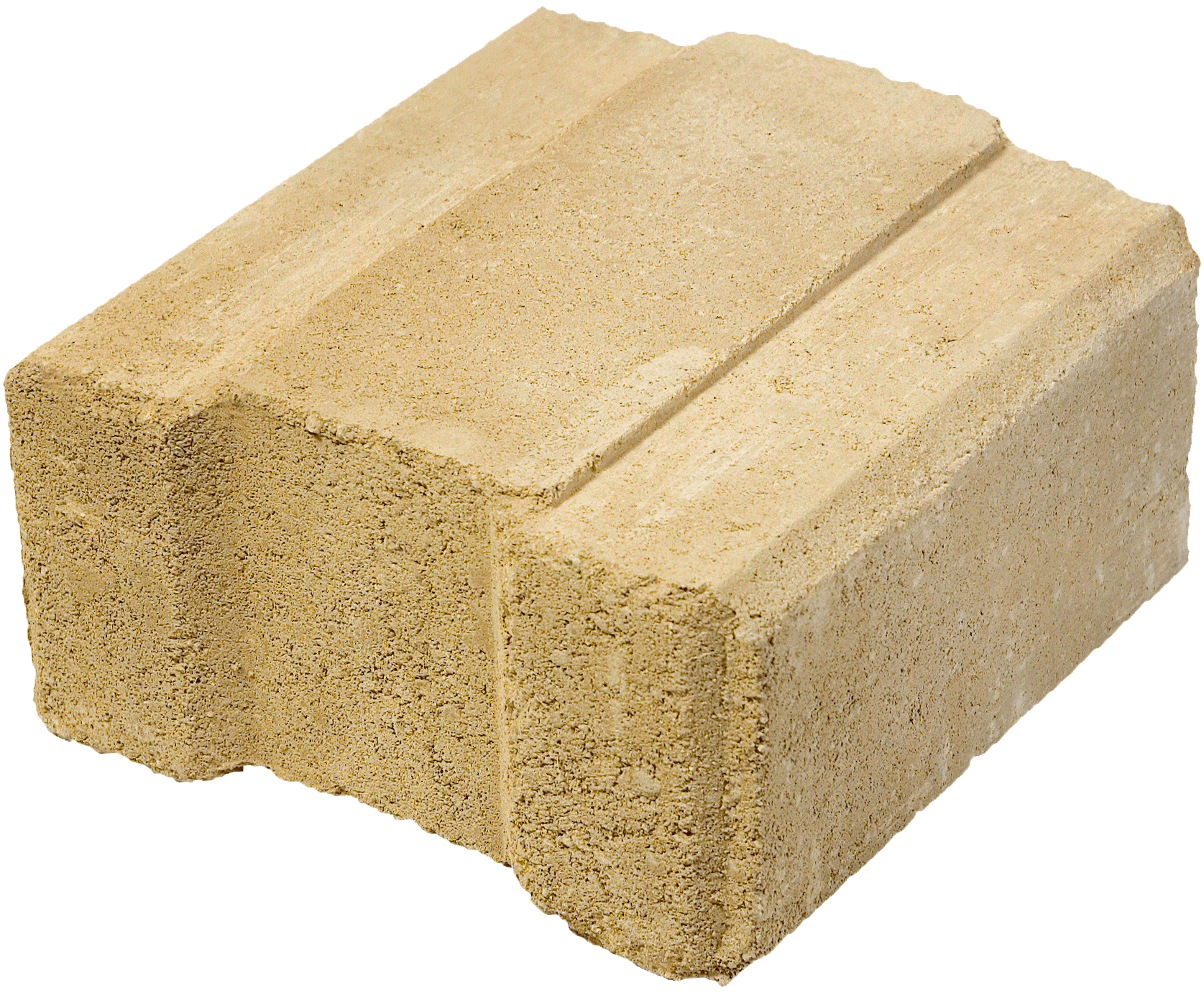

  • Free 220mm mould:
  • Yes

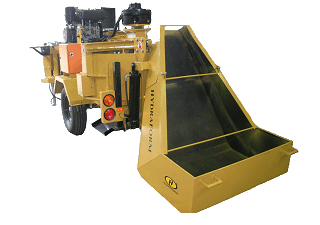

  • Skip chute:
  • Yes
  • Tow hitch:
  • Yes
  • Road tyres:
  • Yes
  • Training:
  • Available
  • Blockyard tools:
  • Available
  • Operating staff:
  • ±13
  • Machine weight:
  • ±2560kg (excl. crating)
